Frame fixing SXR with Hexagon Head

The efficient with short expansion element

About this product

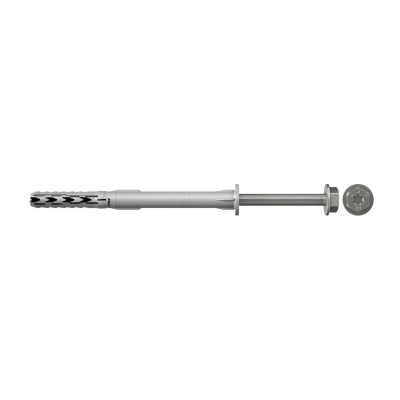

The fischer frame fixing SXR is a plug made from high-quality nylon. Thanks to its special plug geometry, the SXR can be used in solid and hollow building materials. Due to the low anchorage depth of just 50 mm, the frame fixing can work particularly cost-effectively. The low drill hole depth saves time and reduces bit wear. The SXR is offered with a diameter of 10 mm up to a anchor length of 260 mm with hexagonal screws made from zinc-plated steel, hot-dip galvanised steel and stainless steel. The European Technical Approval offers added safety. The SXR with hexagonal screw and moulded washer is particularly recommended for fixing metal constructions.

The SXR is suitable for push-through installation.
The SXR expands in solid building materials.
In hollow building materials the loads are transferred in the area of the block fillets.
With vertically perforated bricks, only use rotary drilling (no impact drilling).
Countersunk head screws are recommended for fixing timber constructions. For metal constructions, plug with wide sleeve rim and hexagon head screws with moulded washer.
